Long-Lasting, Corrosion-Resistant, High Strength, Rigid and Stable.
Welded wire mesh rolls are prefabricated mesh products formed by welding horizontal and vertical steel wires together at their intersections. They are produced in a continuous roll format, allowing for efficient transportation, handling, and installation.

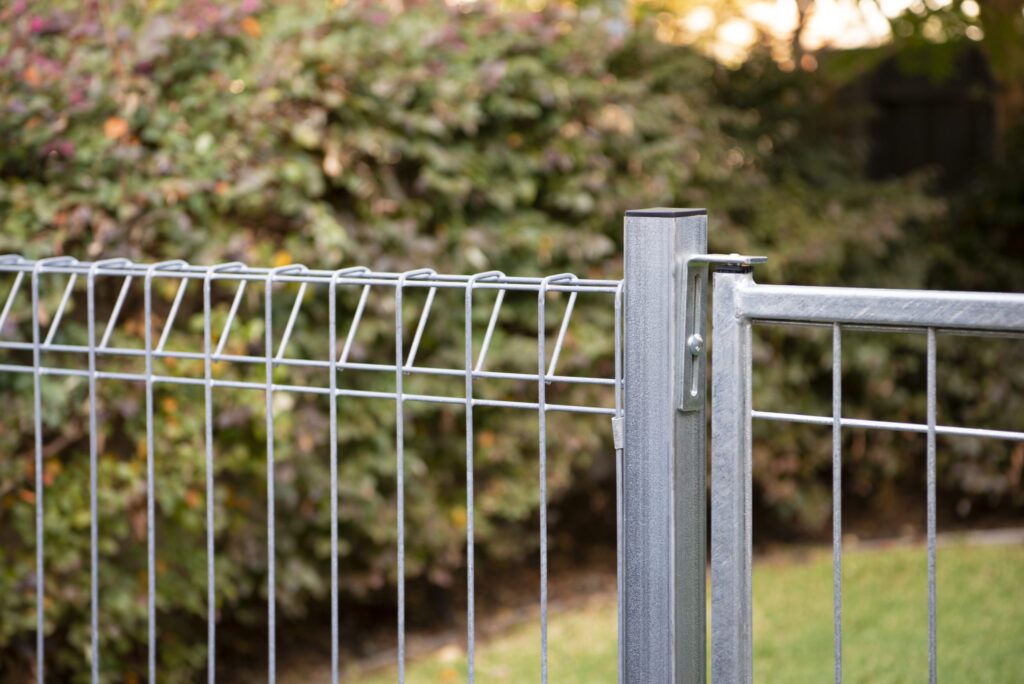

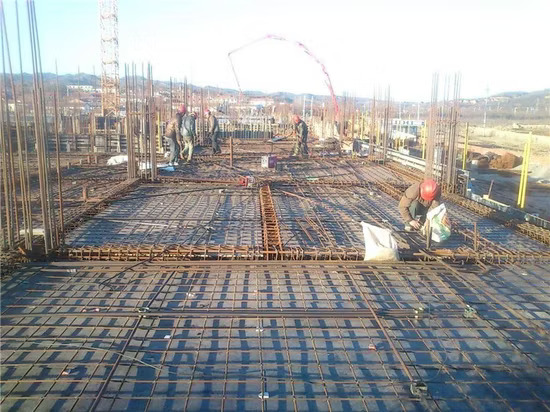

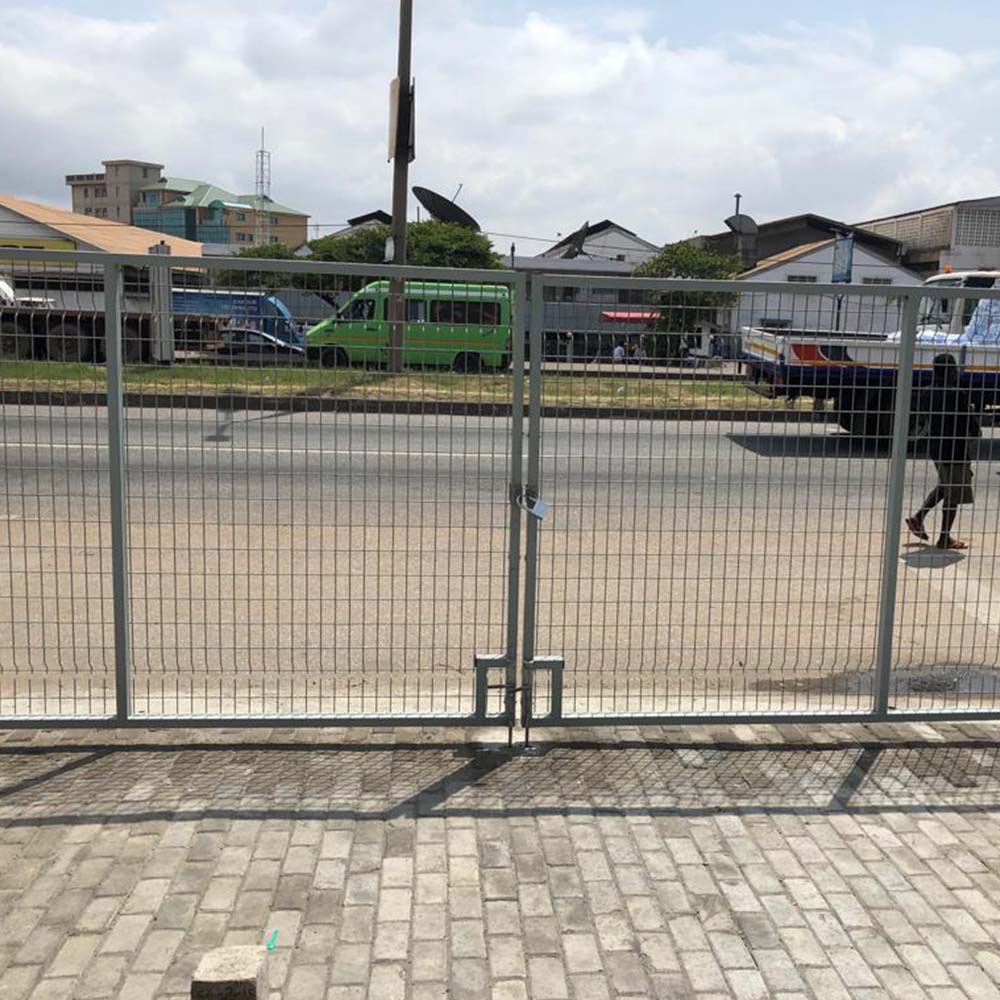

The mesh offers strong, stable, and uniform structural properties, making it suitable for reinforcement, fencing, and containment applications.
Welded wire mesh rolls consist of steel wires arranged in a grid pattern and joined using electrical resistance welding. This process ensures that each intersection point is securely bonded, providing high strength and rigidity. Available in different mesh sizes, wire diameters, and coatings, these rolls are customizable for a variety of industrial, commercial, and agricultural uses.
Strong Welded Joints
Ease of Installation
Corrosion Resistance
Versatility
Customizable
| Component | Specification |
|---|---|
| Base Wire | Low carbon steel (Q195/Q235), wire diameter: 0.5 mm – 6.0 mm |
| Welded Joints | Electrical resistance welded at intersections |
| Galvanized Coating | Zinc coating: 40 – 300 g/m² (electro or hot-dip galvanized) |
| Stainless Steel Wire | Grades SS304, SS316; wire diameter: 0.8 mm – 4.0 mm |
| PVC Coating | PVC thickness: 0.4 – 0.6 mm; available in green, black, etc. |
| Mesh Opening Size | 6.35 mm × 6.35 mm to 150 mm × 150 mm (square or rectangular) |
| Roll Dimensions | Width: 0.5 m – 2.0 m; Length: 10 m – 30 m |
AB Steel can manufacturer all varieties of wire, including Chainlink Fence and Barbed Wire.
